2x-run-time Baby Hack (Version-2)

This is a nicer way of doubling the run time of the DiNotte light. After seeing my first hack Paul P., fellow Randon (Google Groups) member emailed me with his idea. I like it better, so I built it, here it is:

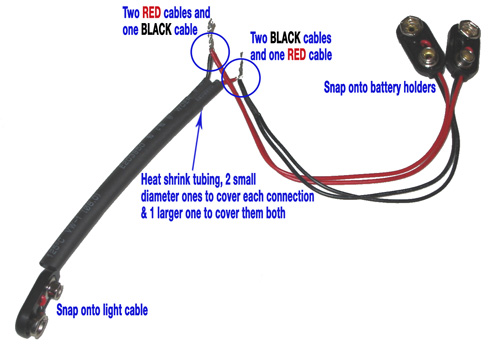

Use 3 9V Snap Connectors (Radio Shack Catalog #: 270-324)
1- Slide the 2 small diameter Heat Shrink tubes then a larger diameter over them.
2- Connect 2 Red to one black cables
3- Connect the other 2 Black cables to the remaining Red cable.

Note: You can buy the extra battery holder just like the one that come with the Dinotte light at Radio Shack. (Catalog # : 270-383)

Click the "Next" link above the photo to go to the next instruction.
