Picture: 47 / 48

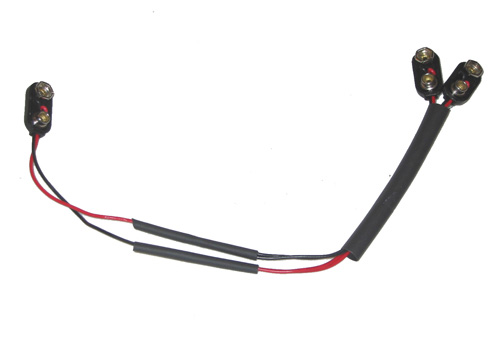

Ready to shrink tubes (Version-2)

Remember to slide the heat shrink tubes before you start making the connections. I slide the 2 small diameter (and shorter) tubes into the snap connector that goes onto the light cable, then slide the larger diameter over them.


(First posted December-18-2006 at 05:35 pm)
